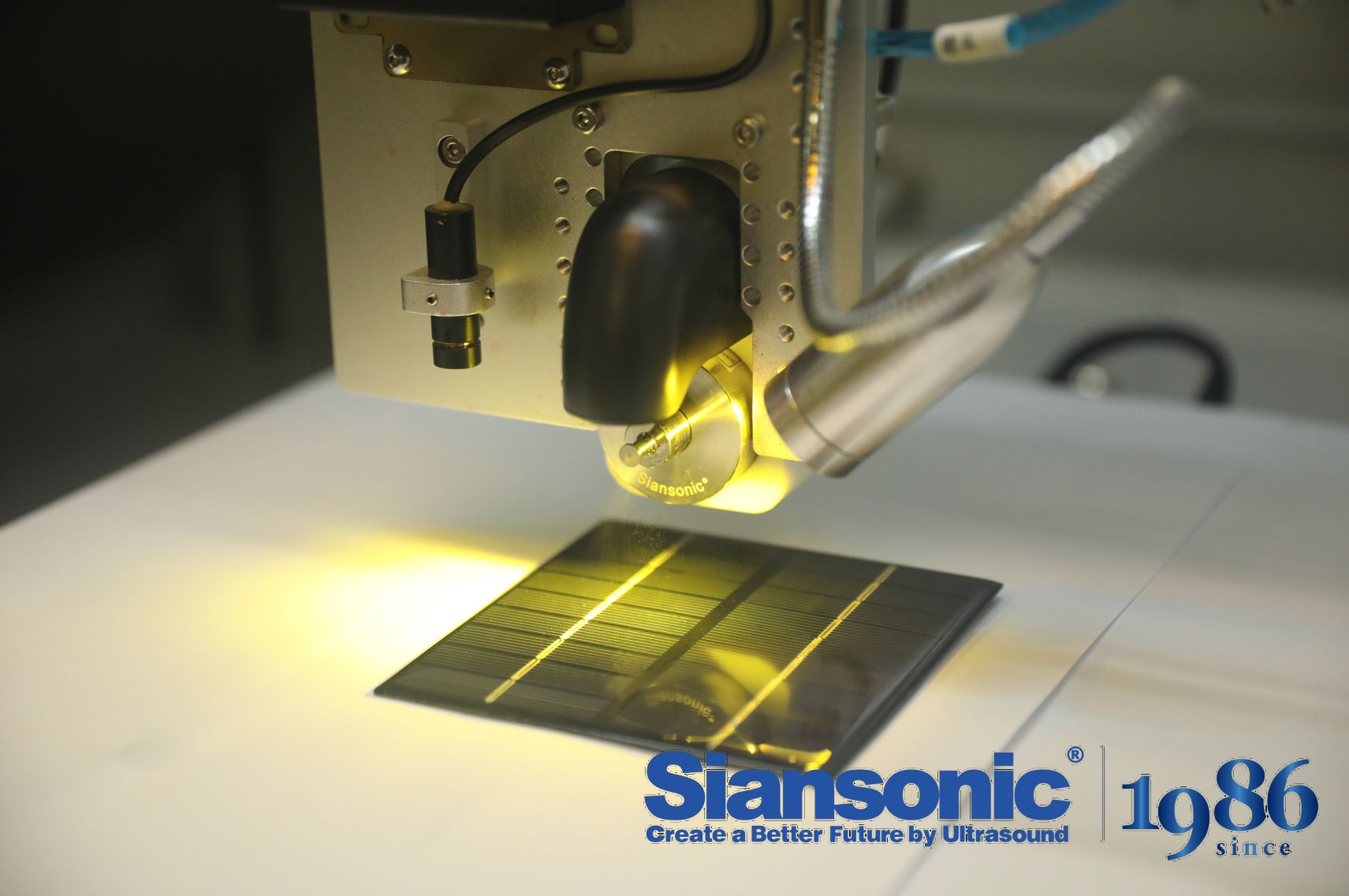

Best Ultrasonic Atomizing Nozzle: How to Choose the Right One for Your Spraying Needs

Choosing an ultrasonic atomizing nozzle isn’t something you want to leave to guesswork. The wrong pick can ruin spray consistency, waste fluids, or shorten equipment life. That’s why we created this practical guide to help you match nozzle design, frequency, and flow rate to your exact spraying needs. With years of engineering insight from Siansonic, you’ll cut through the noise and make a confident decision the first time.

What an Ultrasonic Nozzle Does Differently to Your Fluid

Most nozzles push fluid through a fixed opening, relying on pressure alone to break the stream into droplets. An ultrasonic nozzle flips that logic. Instead of forcing the liquid harder, it vibrates a small tip at frequencies far beyond human hearing. The fluid crawls slowly across that vibrating surface, and when it reaches the edge, it doesn't get squeezed or sheared—it simply lets go. Droplets form almost on their own, as if the liquid decides to leave in uniform, evenly sized parcels.

That difference changes how your fluid behaves in three practical ways. First, because there's no high-pressure jet, fragile materials like suspensions, emulsions, or shear-sensitive polymers keep their structure. Second, the droplet size distribution narrows dramatically, so coatings and sprays land with predictable coverage instead of a messy mix of fine mist and heavy blobs. Third, the low velocity means droplets drift gently onto the target rather than splashing or bouncing off. For thin films, precision deposition, or any process where wasted overspray is money down the drain, that's not a minor tweak—it's a different physical principle at work.

Even the clogging story changes. A conventional nozzle with a tiny orifice can get blocked by a single aggregate or dried particle. An ultrasonic nozzle's opening is typically larger because atomization doesn't depend on a microscopic hole. The vibration itself also discourages buildup on the tip, so the fluid stays moving where it should. You end up with a tool that treats your fluid less like an enemy to be forced and more like a material that can be guided—quietly, consistently, and without the usual fight.

Matching Frequency and Orifice Size to the Way You Spray

The way you move a spray gun across a surface has more influence on your finish than most people realize. Fast, sweeping passes tend to starve the pattern if the orifice is too small, while slow, deliberate strokes can overload the surface when the opening is wide and the pulse rate stays high. Matching frequency and orifice size to your natural hand speed keeps the fluid delivery consistent, so you aren't constantly fighting runs or dry spots.

Short, controlled bursts work best with a smaller orifice and a moderate pulse frequency. That combination keeps atomization tight and prevents the kind of puddling that happens when too much material lands in one spot. Long, continuous strokes, on the other hand, call for a slightly larger opening and a steady higher frequency to maintain a wet edge without gaps or overspray.

Before you reach for more pressure or thinner coating, change the orifice size or adjust the pulse rate to match how you actually spray. It's a faster fix than retraining your arm, and it usually clears up finish issues that feel impossible to solve any other way.

The Fluid Properties That Quietly Rule Your Nozzle Choice

A nozzle that works beautifully on water can fall apart the moment you push a shear-thinning polymer through it. Viscosity is the obvious starting point, but the way that viscosity changes under pressure and shear matters just as much as the nominal number. Fluids with strong pseudoplastic behavior can thin dramatically at the orifice, producing a finer spray than expected, while a mildly thixotropic batch may clog internal passages after a few minutes of recirculation if the nozzle body doesn't allow enough flow to keep structure from rebuilding.

Surface tension and solids loading quietly shape the droplet size distribution too. Low surface tension encourages sheet breakup earlier, which can shift your pattern toward misting even when pressure stays constant. Add abrasive particles above roughly 5–8% by volume and erosion stops being a maintenance issue and becomes a design constraint—hardened inserts, wider flow passages, and different approach angles all change how the spray behaves long before the orifice visibly wears.

Temperature deserves more credit than it usually gets. A fluid that is easy to atomize at 20°C may turn syrupy at 5°C or flash into vapor at the nozzle exit after a heat exchanger cycle. Matching the nozzle to the fluid means looking past the spec sheet and running a quick shear sweep or a bench-top spray trial with the actual recirculating fluid, because the nozzle never sees the fluid the way a viscometer does.

Why Spray Pattern and Drop Size Distribution Outweigh Average Specs

A nozzle's average droplet size or listed flow rate tells you very little about how the spray actually behaves once it leaves the orifice. Two nozzles can share nearly identical catalog numbers and still produce wildly different coverage because the pattern's uniformity and the spread of droplet sizes matter far more on the target surface. An average can hide a bimodal distribution where a few huge droplets carry most of the volume while fine droplets drift away, leaving streaks, hot spots, or wasted chemical.

Spray pattern matters because it determines overlap and edge fade. A tight, uniform pattern with soft boundaries lets you match boom spacing or fan geometry without over- or under-applying. Drop size distribution then dictates how the spray interacts with the surface, whether it bounces, runs off, or settles into crevices. Focusing only on average specs often leads to tuning a pump for a single number while ignoring the real-world result: uneven deposition, poor adhesion, or excessive drift that no average can predict.

Materials, Clogs, and Corrosion: What Keeps a Nozzle Running

Most nozzle failures trace back to three things: what the nozzle is made of, what tries to block it, and what slowly eats it. Hardened stainless steel handles plain water and many mild chemicals, but switch to abrasive slurries or acidic solutions and you'll watch the orifice round out within weeks. Ceramic inserts or tungsten carbide tips cost more up front, yet they keep spray patterns tight long after cheaper metals have drifted off-angle.

Clogs are less about "if" and more about "when," especially with recirculated water or fluids carrying fine particulates. A 0.5 mm orifice can be stopped by a speck you'd need a microscope to see clearly. Inline strainers catch the big stuff, but the real fix is matching the nozzle's free passage to the dirtiest condition you expect—oversizing the orifice slightly often beats adding another filter you'll forget to clean.

Corrosion does its damage quietly. A nozzle that looks fine on the outside may have pits and micro-cracks along the internal taper, slowly changing the flow rate and droplet size. Choosing a material that sacrifices the outer body rather than the precision surfaces—like a polymer housing with a corrosion-resistant metal core—keeps the spray consistent long enough to matter. When performance drifts, it's usually the metal you didn't think about that failed first.

Testing a Nozzle with Your Own Liquid Before Scaling Up

Before committing to a full-scale production run, it pays to test how your chosen nozzle behaves with the actual liquid you plan to spray. Viscosity, surface tension, and even subtle chemical interactions can change spray angle, droplet size, and flow rate in ways that water-only tests miss. Running a small bench trial with your own formulation lets you spot clogging risks, uneven patterns, or unexpected wear before they become expensive downstream problems.

Set up a simple rig with a pressure gauge, a clean liquid reservoir, and enough tubing to mimic your real feed conditions. Start at the lower end of the nozzle's pressure range and work upward, capturing spray pattern on absorbent paper or a backlit screen. Note any drips at shutoff, pulsation, or shifting of the fan angle. If your liquid is shear-thinning or contains particulates, run the test long enough to see whether the nozzle's performance drifts over time.

Don't stop at a single nozzle sample. Test two or three identical units to rule out manufacturing variation, and if possible, compare a couple of different nozzle materials or orifice sizes. The data you collect now—flow rate at a given pressure, pattern uniformity, wear after a few hours—gives you a solid baseline for scaling up. A few hours at the bench can save you from a failed pilot batch or a line shutdown later.

FAQ

Conclusion

Finding the right ultrasonic atomizing nozzle starts with recognizing that these devices do more than just break liquid into droplets—they impart a very specific vibrational energy to your fluid, which means the nozzle's frequency and orifice size must align with how you actually spray. A fine, low-flow mist for coating electronics demands a different combination than a wider, heavier spray for humidification, and ignoring that mismatch leads to uneven coverage or wasted material. Fluid properties like viscosity, surface tension, and solids content quietly dictate whether a given nozzle will produce a stable spray or simply clog after a few minutes, so these factors need to be weighed before you even look at a catalog.

Beyond the spec sheet, what separates a reliable nozzle from a frustrating one is how the spray pattern and drop size distribution behave in real conditions, not just the average values printed in a datasheet. Materials matter just as much: a nozzle that corrodes or accumulates residue will drift out of spec quickly, even if it started perfectly. That's why the most practical step is to test any shortlisted nozzle with your own liquid at a small scale before committing to full production. Run it long enough to see whether it clogs, how the pattern holds up, and whether the droplets stay consistent. Only then can you confidently choose the nozzle that won't just work on paper, but will keep working in your process.
